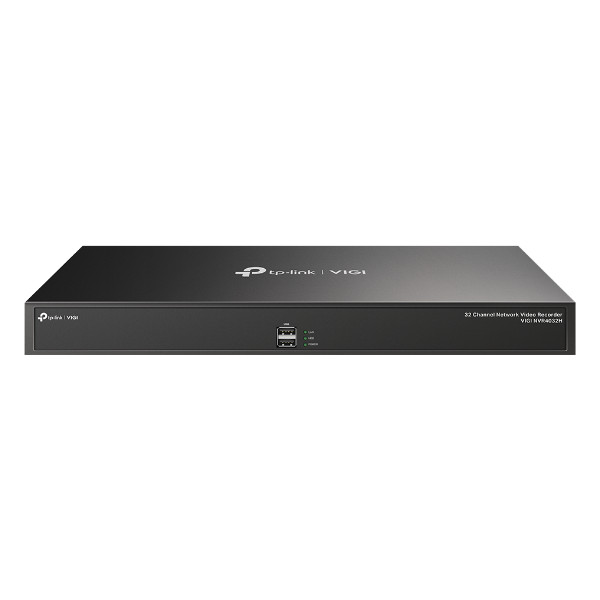

TP-link NVR rögzítő - NVR4032H (32 csatorna; H265+, 8MP, 320Mbps, HDMI, VGA, USB, 4x Sata(max10TB), audio)
389 880 Ft
Nettó: 306 992 Ft
Nettó: 306 992 Ft
TP-link NVR rögzítő - NVR4032H (32 csatorna; H265+, 8MP, 320Mbps, HDMI, VGA, USB, 4x Sata(max10TB), audio)
Raktáron – várható szállítás: 2-5 munkanap
389 880 Ft
Nettó: 306 992 Ft
Nettó: 306 992 Ft
Raktárkészlet:
Raktáron
Szállítási Idő :
5 munkanap
TP-link NVR rögzítő - NVR4032H (32 csatorna; H265+, 8MP, 320Mbps, HDMI, VGA, USB, 4x Sata(max10TB), audio)
| Video and Audio | |
| IP Video Input | 32-Channel |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 320 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Video Output Mode | HDMI/VGA Independent Output |
| Multi-View Display | 1/4/6/8/9/16/25/32/36 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ |
| 2CIF/CIF/QCIF | |
| Synchronous Playback | 16-Channel |
| Capability | 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP |
| (30 fps) | |
| Record Management | |
| Record Mode | • Manual Recording |
| • Scheduling Recording | |
| • Motion Detection Recording | |
| Playback Mode | • Instant Playback |
| • Regular Playback | |
| • Tag Playback | |
| • Event Playback | |
| Backup Mode | • Regular Backup |
| • Video Clip Backup | |
| Playback Function | • Play |
| • Pause | |
| • Stop | |
| • Fast Forward | |
| • Fast Backward | |
| • Play By Frame | |
| • Full Screen | |
| • Video Clip | |
| • Export Clip | |
| • Digital Zoom | |
| • Lock Recording | |
| • Audio On/Off | |
| Hálózat | |
| Szabvány | UPnP (Plug and Play), NTP (Network Timing), TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Incoming Bandwith | 320 Mbps |
| Outgoing Bandwidth | 320 Mbps |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |
| External Interface | |
| Network Interface | 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet |
| Interface | |
| USB Interface | USB Interface |
| Audio Interface | 1, Audio In; 1, Audio Out |
| Alarm In/Out | 16.ápr |
| Serial Interface | 1, RS232 |
| Power | 1× AC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 10 TB Capacity for Each HDD |
| Alarm | |
| General Alarm | Motion Detection, Video Tampering, Intrusion Detection, |
| Line-Crossing Detection | |
| Anomaly Alarm | Video Loss, Offline and IP Conflict,Disk Exception, Login |
| Exception, Fan Exception | |
| Alarm Linkage | Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm |
| Network Management | |
| Network Protocols | UPnP (Plug and Play), NTP (Network Timing) |
| Interoperability | ONVIF, CGI |
| Mobile Phone Access | Android, iOS |
| Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Record Playback | |
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection |
| Recording | |
| Playback Mode | Instant Playback, Regular Playback, Tag Playback, Event |
| Playback | |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play by |
| Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, | |
| Lock Recording, Audio On/Off | |
| Általános | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Csomagolás tartalma | VIGI Network Video Recorder |
| Mouse | |
| Installation Guide | |
| Power Cord, HDD Power Cables, HDD Data Cables, and Terminal Blocks | |
| Mounting Brackets, Screws and Rubber Feet | |
| Working Temperature | -10–55 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Méretek (Sz x Mé x Ma) | 440 × 330 × 44 mm |
| Külső tápellátás | 100-240 VAC, 50 to 60HZ, 1.5A |
| Net Weight | 4.0 Kg |
| Gross Weight | 5.2 Kg# |
| Power Supply | 100-240 VAC, 50 to 60HZ, 1.5A |
| Power Consumption | 5 W (Without Disk) |
| 48 W (With Disk) | |
| Certifications | CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI |
| Videó/Kép | |
| IP Video Input | 32-Channel |
| Multi-View Dispaly | 1/4/6/8/9/16/25/32/36 |
| Video Output Mode | HDMI/VGA Independent Output |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ |
| 2CIF/CIF/QCIF | |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, |
| 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, | |
| 1280x720/60Hz, 1024x768/60Hz | |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, |
| 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, | |
| 1024x768/60Hz | |
Gyártó:
TP-LINK
Csatornák száma:
32
Garancia:
48
Gyártói Cikkszám:
VIGI NVR4032H
Készleten:
Elérhető
VTSZ:
8517620091
Szállítási Költség:
ingyenes
Tömörítés:
H265+/H265/H264+/H264
Max. merevlemezek száma:
4
USB 2.0:
Van
Max. LAN sebesség:
1000
HDD csatolófelület:
SATA
Max rögzíthető csatornák száma:
32
Max. HDD kapacitás portonként:
10000
Video kimenetek típusa:
1x VGA + 1x HDMI
Max rögzíthető IP kamera felbontás:
8MP
Onvif támogatás:
Van
EAN:
4895252500752
Gyártói cikkszám:
VIGI NVR4032H
Garancia:
48 hónap
Max. IP kamera felbontás:
8
HDD száma:
4
LAN csatlakozók száma:
2
I/O csatlakozók száma:
16/4
Garancia (hónap):
48
EAN:
4895252500752
Listaár:
339 027 HUF
Gyártó:
TP-LINK
Tömeg:
578 g/db
