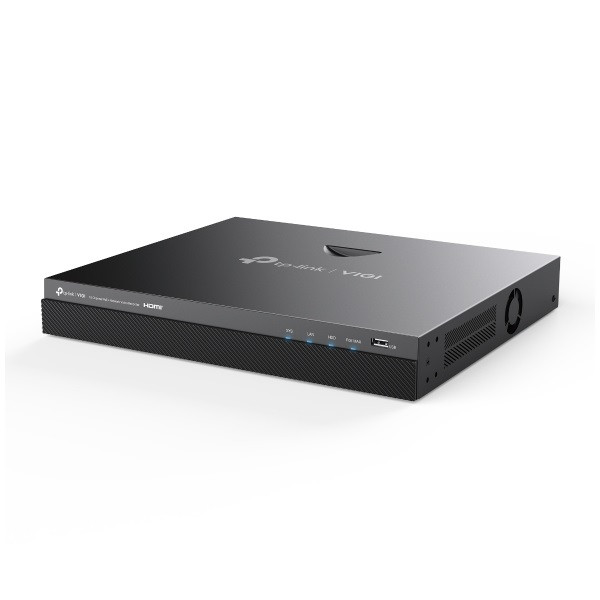

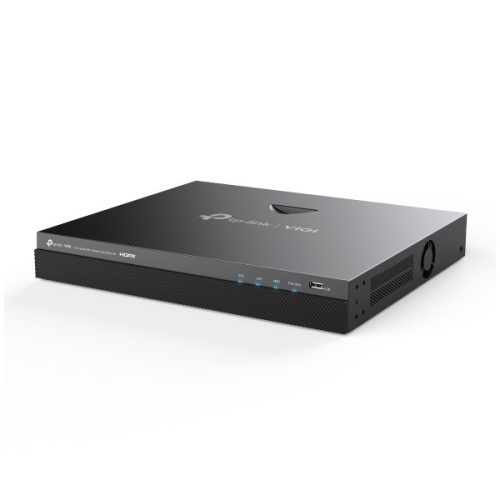

TP-link NVR rögzítő - NVR2016H-16MP (16 csatorna, 16 PoE+ port 140W; H265+, 8MP, HDMI, VGA, 2xUSB, 2xSata, audio)
361 634 Ft
Nettó: 284 751 Ft
Nettó: 284 751 Ft
TP-link NVR rögzítő - NVR2016H-16MP (16 csatorna, 16 PoE+ port 140W; H265+, 8MP, HDMI, VGA, 2xUSB, 2xSata, audio)
Raktáron – várható szállítás: 2-5 munkanap
361 634 Ft
Nettó: 284 751 Ft
Nettó: 284 751 Ft
Raktárkészlet:
Raktáron
Szállítási Idő :
5 munkanap
TP-link NVR rögzítő - NVR2016H-16MP (16 csatorna, 16 PoE+ port 140W; H265+, 8MP, HDMI, VGA, 2xUSB, 2xSata, audio)
| Video and Audio | |
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8/9/16 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel |
| Capability | • 25fps: |
| 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP | |
| • 30fps: | |
| 4-ch @ 3MP, 2-ch @ 5MP | |
| Record Management | |
| Record Mode | • Manual Recording |
| • Scheduling Recording | |
| • Motion Detection Recording | |
| Playback Mode | • Instant Playback |
| • Regular Playback | |
| • Tag Playback | |
| • Event Playback | |
| Backup Mode | • Regular Backup |
| • Video Clip Backup | |
| Playback Function | • Play |
| • Pause | |
| • Stop | |
| • Fast Forward | |
| • Fast Backward | |
| • Play By Frame | |
| • Full Screen | |
| • Video Clip | |
| • Export Clip | |
| • Digital Zoom | |
| • Lock Recording | |
| • Audio On/Off | |
| Hálózat | |
| Szabvány | UPnP (Plug and Play), NTP (Network Timing) |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |
| External Interface | |
| Network Interface | 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1, Audio In; 1, Audio Out |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 10 TB Capacity for Each HDD |
| PoE | |
| Standard | 802.3at/af Compliant |
| Interface | 1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 140 W Available for All PoE+ Ports, 30 W Max per Port |
| Alarm | |
| General Alarm | • Motion Detection |
| • Video Tampering | |
| • Line-Crossing Detection | |
| • Intrusion Detection | |
| • Region Entering Detection | |
| • Region Exiting Detection | |
| • Object Abandoned/Removal Detection | |
| • Vehicle Detection | |
| • Human Detection | |
| • Smart Frame | |
| Anomaly Alarm | • Video Loss |
| • Offline and IP Conflict | |
| • Disk Exception | |
| • Login Exception | |
| • Fan Exception | |
| Alarm Linkage | • Recording |
| • White Light Alarm | |
| • Buzzer | |
| • Log | |
| • Audible Alarm | |
| Általános | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Csomagolás tartalma | • VIGI Network Video Recorder |
| • Power Adapter | |
| • Power Cables | |
| • HDD Power Cables | |
| • HDD Data Cables | |
| • Mounting Accessories | |
| • Mouse | |
| • Quick Installation Guide | |
| Working Temperature | • NVR: -10–55 °C |
| • Power Adapter: 0–40 °C | |
| Working Humidity | 10%~90% RH Non-Condensing |
| Méretek (Sz x Mé x Ma) | 330 × 285 × 45 mm |
| Net Weight | 2.1 Kg |
| Gross Weight | 4.1 Kg |
| Power Supply | 53.5V DC/3.37A |
| Power Consumption | • 6.2 W (Without Disk) |
| • 40 W (With Disk) | |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
Gyártó:
TP-LINK
Csatornák száma:
16
Garancia:
48
Gyártói Cikkszám:
VIGI NVR2016H-16MP
Készleten:
Elérhető
VTSZ:
8517620091
Szállítási Költség:
ingyenes
Tömörítés:
H265+/H265/H264+/H264
Max. merevlemezek száma:
2
USB 2.0:
Van
Max. LAN sebesség:
1000
HDD csatolófelület:
SATA
USB 3.0:
Van
Max rögzíthető csatornák száma:
16
Max. HDD kapacitás portonként:
10000
Video kimenetek típusa:
1x VGA + 1x HDMI
Max rögzíthető IP kamera felbontás:
8MP
Onvif támogatás:
Van
EAN:
4895252504026
Gyártói cikkszám:
VIGI NVR2016H-16MP
Garancia:
48 hónap
Max. IP kamera felbontás:
8
HDD száma:
2
LAN csatlakozók száma:
1
Beépített PoE Switch:
Van
Garancia (hónap):
48
EAN:
4895252504026
Listaár:
314 465 HUF
Gyártó:
TP-LINK
Tömeg:
578 g/db
Legyen Ön az első, aki véleményt ír!
