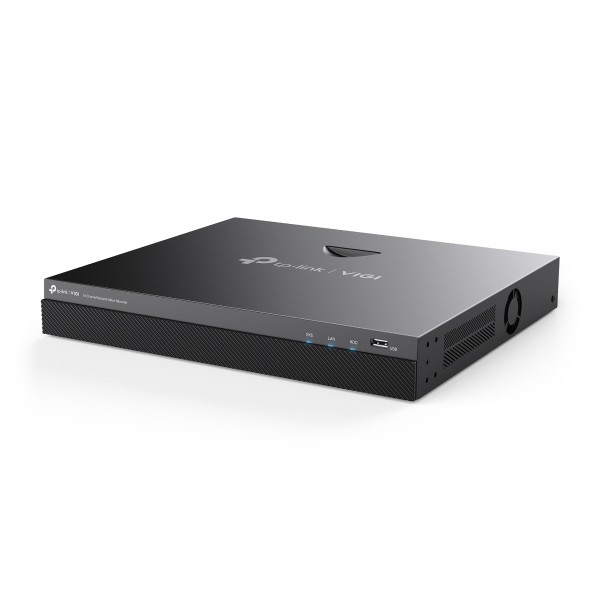

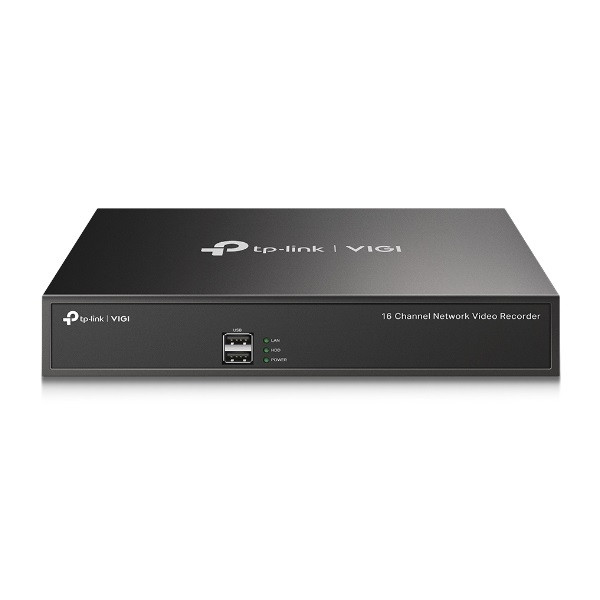

TP-link NVR rögzítő - NVR1016H (16 csatorna, H265+, 5MP, HDMI, VGA, 2xUSB, 1x Sata (max 10TB), audio)

74 909 Ft
Nettó: 58 984 Ft

TP-link NVR rögzítő - NVR1016H (16 csatorna, H265+, 5MP, HDMI, VGA, 2xUSB, 1x Sata (max 10TB), audio)

Name: TP-link NVR rögzítő - NVR1016H (16 csatorna, H265+, 5MP, HDMI, VGA, 2xUSB, 1x Sata (max 10TB), audio)
Brand: TP-LINK
SKU: BIZVIGNVR1016H
Price: 74909 HUF

74 909 Ft
Nettó: 58 984 Ft

Raktárkészlet:

Raktáron

Szállítási Idő :

5 munkanap

Video and Audio
IP Video Input	16-Channel
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	60 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode	HDMI/VGA Simultaneous Output
Multi-View Display	1/4/6/8/9/16
DECODING
Audio Compression	G.711A/G.711U/G.726
Decoding Format	H.265+/H.265/ H.264+/H.264
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Live View/Playback Resolution	8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/
Live View/Playback Resolution	720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	16-Channel
Capability	1-ch @ 8 MP, 2-ch @ 4 MP, 4-ch @ 2 MP
Record Management
Record Mode	• Manual Recording
	• Scheduling Recording
	• Motion Detection Recording
Playback Mode	• Instant Playback
	• Regular Playback
	• Tag Playback
	• Event Playback
Backup Mode	• Regular Backup
Backup Mode	• Video Clip Backup
Playback Function	• Play
	• Pause
	• Stop
	• Fast Forward
	• Fast Backward
	• Play By Frame
	• Full Screen
	• Video Clip
	• Export Clip
	• Digital Zoom
	• Lock Recording
	• Audio On/Off
Hálózat
Szabvány	TCP/IP, DHCP, DNS, NTP, UPnP
Mobile Phone Access	Android, iOS
Incoming Bandwith	80 Mbps
Outgoing Bandwidth	60 Mbps
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF, CGI
External Interface
Network Interface	1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface	2× USB 2.0
Audio Interface	1, Audio In; 1, Audio Out
Alarm In/Out	N/A
Serial Interface	N/A
Power	1× DC Jack
Reset Button	1
Speaker	N/A
eSATA	N/A
HDMI	1
VGA	1
HARD DISK
SATA	1 SATA Interface
Capacity	Up to 10 TB
Alarm
General Alarm	• Motion Detection
	• Video Tampering
	• Line-Crossing Detection
	• Intrusion Detection
	• Region Entering Detection
	• Region Exiting Detection
	• Object Abandoned/Removal Detection
	• Vehicle Detection
	• Human Detection
Anomaly Alarm	• Video Loss
	• Offline and IP Conflict
	• Disk Exception
	• Login Exception
Alarm Linkage	• Recording
	• White Light Alarm
	• Buzzer
	• Log
	• Audible Alarm
Fizikai kezelőfelület
Hálózati csatlakozás	1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface	2× USB 2.0
Általános
Operating Temperature	-10–55 °C
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Tömeg	578.5 g
Csomagolás tartalma	VIGI Network Video Recorder
	Power Adapter
	HDD Screws
	Mouse
	Quick Installation Guide
Working Temperature	• NVR: -10–55 °C
Working Temperature	• Power Adapter: 0–40 °C
Working Humidity	10%~90% RH Non-Condensing
Méretek (Sz x Mé x Ma)	246.2 × 148.2 × 45 mm
Külső tápellátás	DC 12V/1.5A
Net Weight	0.6 Kg
Gross Weight	1.06 Kg
Power Consumption	4.25 W (without disk)
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, IC, HDMI
Videó/Kép
Video Input	16-Channel IP Video Input, up to 8 MP Resolution
Video Output	Recording Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
	HDMI/VGA
	Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz
