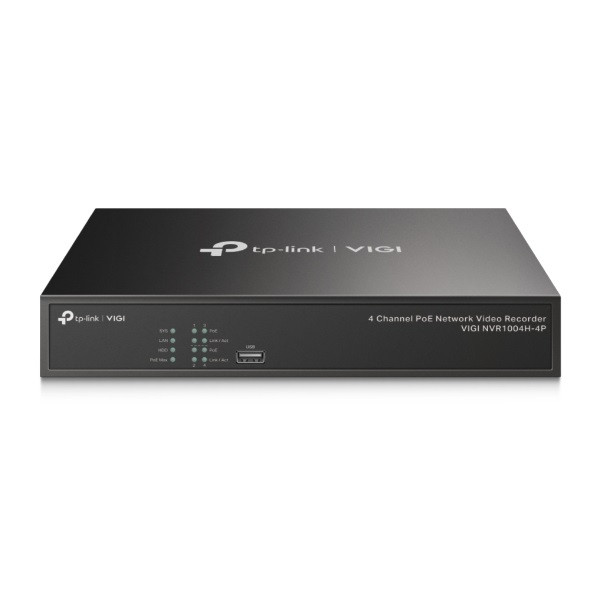

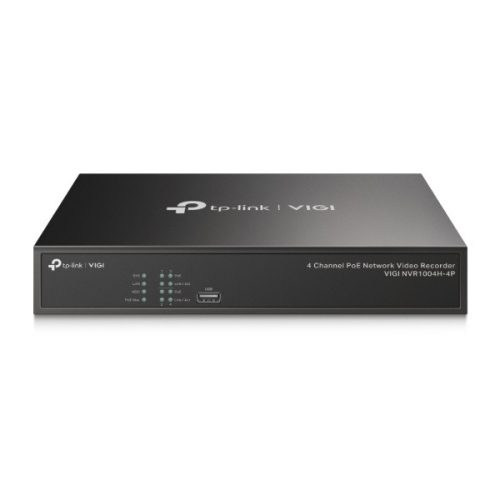

TP-link NVR rögzítő - NVR1004H-4P (4 csatorna, 4xPoE+ port; H265+, 5MP, HDMI, VGA, 2xUSB, 1x Sata(max10TB), audio)
54 506 Ft
Nettó: 42 918 Ft
Nettó: 42 918 Ft
TP-link NVR rögzítő - NVR1004H-4P (4 csatorna, 4xPoE+ port; H265+, 5MP, HDMI, VGA, 2xUSB, 1x Sata(max10TB), audio)
Raktáron – várható szállítás: 2-5 munkanap
54 506 Ft
Nettó: 42 918 Ft
Nettó: 42 918 Ft
Raktárkészlet:
Raktáron
Szállítási Idő :
5 munkanap
TP-link NVR rögzítő - NVR1004H-4P (4 csatorna, 4xPoE+ port; H265+, 5MP, HDMI, VGA, 2xUSB, 1x Sata(max10TB), audio)
| Video and Audio | |
| IP Video Input | 4-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 04.jan |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ |
| DCIF/2CIF/CIF/QCIF | |
| Synchronous Playback | 4 Channel |
| Capability | 2-ch @ 8MP, 4-ch @ 4MP |
| Record Management | |
| Record Mode | • Manual Recording |
| • Scheduling Recording | |
| • Motion Detection Recording | |
| Playback Mode | • Instant Playback |
| • Regular Playback | |
| • Tag Playback | |
| • Event Playback | |
| Backup Mode | • Regular Backup |
| • Video Clip Backup | |
| Playback Function | • Play |
| • Pause | |
| • Stop | |
| • Fast Forward | |
| • Fast Backward | |
| • Play By Frame | |
| • Full Screen | |
| • Video Clip | |
| • Export Clip | |
| • Digital Zoom | |
| • Lock Recording | |
| • Audio On/Off | |
| Hálózat | |
| Szabvány | TCP/IP, DHCP, DNS, NTP, UPnP |
| Mobile Phone Access | Android, iOS |
| Incoming Bandwith | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |
| External Interface | |
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1, Audio In; 1, Audio Out |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB |
| PoE | |
| Standard | 802.3at/af Compliant |
| Interface | 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 53 W? Available for All PoE+ Ports, 30 W Max per Port |
| Alarm | |
| General Alarm | • Motion Detection |
| • Video Tampering | |
| • Line-Crossing Detection | |
| • Intrusion Detection | |
| • Region Entering Detection | |
| • Region Exiting Detection | |
| • Object Abandoned/Removal Detection | |
| • Vehicle Detection | |
| • Human Detection | |
| • Smart Frame | |
| Anomaly Alarm | • Video Loss |
| • Offline and IP Conflict | |
| • Disk Exception | |
| • Login Exception | |
| Alarm Linkage | • Recording |
| • White Light Alarm | |
| • Buzzer | |
| • Log | |
| • Audible Alarm | |
| Fizikai kezelőfelület | |
| Hálózati csatlakozás | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
| Általános | |
| Operating Temperature | -10–55 °C |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Csomagolás tartalma | VIGI Network Video Recorder |
| Power Adapter | |
| HDD Screws | |
| Mouse | |
| Quick Installation Guide | |
| Working Temperature | • NVR: -10–55 °C |
| • Power Adapter: 0–40 °C | |
| Working Humidity | 10%~90% RH Non-Condensing |
| Méretek (Sz x Mé x Ma) | 246.2 × 148.2 × 45 mm |
| PoE | Standard: 802.3af/at |
| PoE Ports: Ports 1-4 | |
| PoE Budget: 53 W | |
| Külső tápellátás | 53.5V DC/1.31A |
| Power Supply | 53.5V DC/1.31A |
| Power Consumption | 4.25 W (without disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| Videó/Kép | |
| Video Input | 4-Channel IP Video Input, up to 8MP Resolution |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ |
| DCIF/2CIF/CIF/QCIF | |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, |
| 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, | |
| 1024x768/60Hz, 1280x720/60Hz | |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, |
| 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, | |
| 1280x720/60Hz | |
Gyártó:
TP-Link
Csatornák száma:
4
Garancia:
48
Gyártói Cikkszám:
VIGI NVR1004H-4P
Készleten:
Elérhető
VTSZ:
8517620091
Tömörítés:
H265+/H265/H264+/H264
Max. merevlemezek száma:
1
Max. LAN sebesség:
100
HDD csatolófelület:
SATA
Max rögzíthető csatornák száma:
4
Max. HDD kapacitás portonként:
10000
Max rögzíthető IP kamera felbontás:
8MP
Onvif támogatás:
Van
EAN:
4897098688748
Gyártói cikkszám:
VIGI NVR1004H-4P
Garancia:
48 hónap
Max. IP kamera felbontás:
8
HDD száma:
Van
LAN csatlakozók száma:
1
Beépített PoE Switch:
Van
Garancia (hónap):
48
EAN:
4897098688748
Listaár:
47 396 HUF
Gyártó:
TP-LINK
Tömeg:
578 g/db
