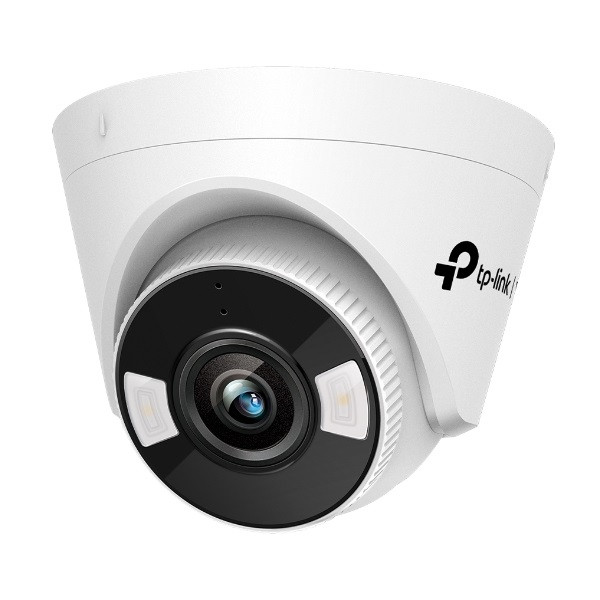

TP-Link IP turretkamera - C430 (FullColor, 3MP, 4mm, H265+, fehér LED30m, IR30m, PoE/12VDC, mikrofon)
24 171 Ft
Nettó: 19 032 Ft
Nettó: 19 032 Ft
TP-Link IP turretkamera - C430 (FullColor, 3MP, 4mm, H265+, fehér LED30m, IR30m, PoE/12VDC, mikrofon)
Raktáron – várható szállítás: 2-5 munkanap
24 171 Ft
Nettó: 19 032 Ft
Nettó: 19 032 Ft
Raktárkészlet:
Raktáron
Szállítási Idő :
5 munkanap
TP-Link IP turretkamera - C430 (FullColor, 3MP, 4mm, H265+, fehér LED30m, IR30m, PoE/12VDC, mikrofon)
| Kamera | |
| Képérzékelő | 1/2.8” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Aperture | 2.8 mm: F1.6 |
| 4 mm: F1.6 | |
| Optika | 2.8 mm/ 4 mm |
| Lens Mount | M12 |
| Min. szükséges megvilágítás | Color: 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| IR Working Distance | 30m |
| Látószög | 2.8mm: 107.5°/57.2°/128.7°(H/V/D) |
| 4mm: 89.1°/45.1°/106.9°(H/V/D) | |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8/4 mm |
| Aperture | 2.8 mm: F1.6 |
| 4 mm: F1.6 | |
| FOV | 2.8mm: |
| Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7° | |
| 4mm: | |
| Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9° | |
| Lens Mount | M12 |
| DORI Distance | 2.8 mm |
| Detect: 52 m (170 ft) | |
| Observe: 22 m (71 ft) | |
| Recognize: 10 m (34 ft) | |
| Identify: 5 m (17 ft) | |
| 4 mm | |
| Detect: 70 m (230 ft) | |
| Observe: 29 m (96 ft) | |
| Recognize: 14 m (46 ft) | |
| Identify: 7 m (23 ft) | |
| Angle Adjustment (Manual) | |
| Range | Pan: 0° to 360° |
| Tilt: 0° to 85° | |
| Rotate: 0° to 360° | |
| ILLUMINATOR | |
| IR LED | Quantity: 2 |
| Range: 30m | |
| Wavelength: 850nm | |
| White LED | Quantity: 2 |
| Range: 30m | |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 2304 × 1296 |
| Main Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 | |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. | |
| Sub-Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| Resolution: 704x576, 640x480, 352x288, 320x240 | |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. | |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 | |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps |
| Sub-Stream: 64 Kbps to 512 Kbps | |
| Image | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | WDR |
| SNR | ? 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Hang | |
| Hangkommunikáció | N/A |
| Hangbemenet | Yes |
| Hangkimenet | N/A |
| Hangtömörítés | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| Hálózat | |
| Szabvány | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, |
| RTSP, NTP, UPnP UDP, SSL/TLS | |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser | Google Chrome® 57 and above |
| Firefox® 52 and above | |
| Safari® 11 and above | |
| Microsoft® Edge 91 and above | |
| Cloud | Yes |
| Biztonság | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Figyelmeztetési és eseménykezelési vezérlés | |
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | White Light Flashing, Message Push |
| Linkage Method | N/A |
| Output Notification | Message Push |
| Fizikai kezelőfelület | |
| Hálózati csatlakozás | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| Gomb | - |
| Video Output | - |
| On-board Storage | N/A |
| Built-in Microphone | Yes |
| Built-in Speaker | N/A |
| Audio | N/A |
| Általános | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Csomagolás tartalma | VIGI Network Camera |
| Quick Start Guide | |
| Mounting Accessories | |
| Méret (Ma x Sz x Mé) | 123 × 123 × 83 mm |
| Material | Plastic |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Net Weight | 0.21 Kg |
| Gross Weight | 0.36 Kg |
| Power Consumption | 12V DC: Max 4.2W |
| PoE: Class 0 | |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug |
| PoE (802.3af/at, class 0) | |
| Protection | N/A |
| Product Dimensions (L x W x H) | 123× 83× 123 mm |
| Certifications | CE/BSMI/VCCI/ONVIF |
| Videó/Kép | |
| Videó tömörítés | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 | |
| Kép frissítés (frame) és felbontás | Main Stream: |
| Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 | |
| Sub-Stream: | |
| Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 704x576, 640x480, 352x288, 320x240 | |
| Max. Resolution | 3MP (2304 × 1296) |
| Videótovábbítás | Main Stream |
| Sub-Stream | |
| Képbeállítás | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Video Bit Rate | 64 Kbps to 4 Mbps |
| Day/Night Switch | Day/Night/Auto/Schedule |
| SMART FEATURE-SET | |
| Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
Gyártó:
TP-LINK
Felbontás (MP):
3MP
Lencse (mm):
4
Beépített mikrofon:
Van
Típus:
Turret
Garancia:
36
Gyártói Cikkszám:
VIGI C430(4MM)
Készleten:
Elérhető
VTSZ:
85258900
Kialakítás:
Turret
Tömörítés:
H265+, H265, H264+, H264
H264+:
Van
CCD/CMOS:
1/2.8 Progressive scan CMOS
Max. IR távolság:
30
Digitális zajszűrés:
3DNR
Beépített Infra led:
Van
BLC:
Van
Max. LAN sebesség:
100
Tápellátás:
DC / PoE
Onvif támogatás:
Van
Onvif:
Van
H265+:
Van
H265:
Van
WiFi:
Vezetékes
Beépített LED fény:
Van
Kiegészítő világítás:
Hibrid
Segéd fény távolság:
30
Segéd fény:
Hibrid
Elhelyezés:
Beltéri
Hang:
Beépített Mikrofon
Burkolat:
Műanyag
AI felismerés:
Van
Fényerő kompenzálás:
DWDR
EAN:
4895252501704
Gyártói cikkszám:
VIGI C430(4MM)
Garancia:
36 hónap
Garancia (hónap):
36
EAN:
4895252501704
Listaár:
21 019 HUF
Gyártó:
TP-LINK
Tömeg:
520 g/db
