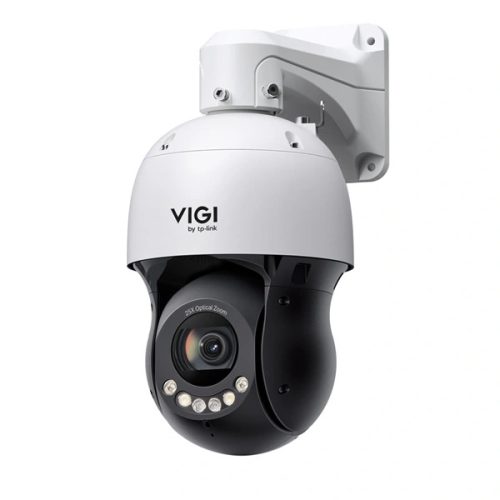

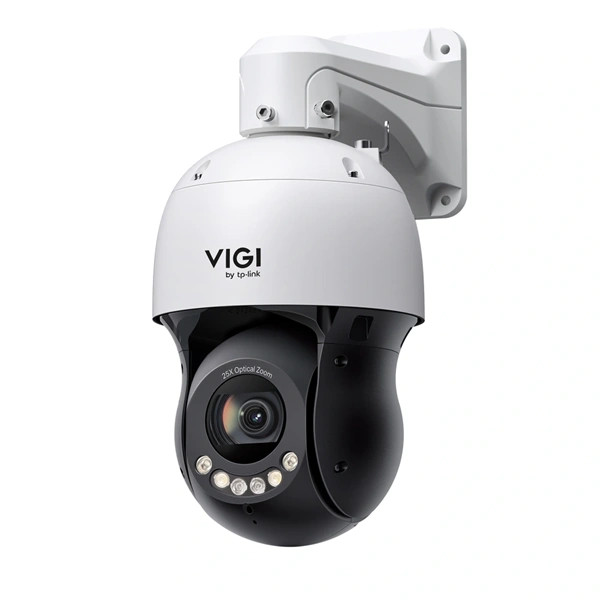

TP-Link IP dómkamera - InSight PTZ5425 (FullColor, 4MP, 5-130mm (25x), LED+IR100m; IP66, IK08, H265+, mikr. hang. PoE)

CAMERA

Image Sensor    1/2.9” Progressive Scan CMOS

Shutter Speed   1/3 to 1/30000 s

Slow Shutter     Yes

Minimum Illumination   0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism   IR Cut Filter

Day/Night Switch          Unified / Scheduled / Auto

LENS

Type     Motorized Varifocal Lens

Focal Length     5.2-130 mm (25X Optical Zoom)

Aperture           Max. F1.6

FOV      • Horizontal FOV: 2.30°-57.06°

• Vertical FOV: 1.31°-32.74°

• Diagonal FOV: 2.63°-65.01

DORI Distance   Wide

• D: 351 ft (107 m)

• O: 144 ft (44 m)

• R: 69 ft (21 m)

• I: 36 ft (11 m)

Tele

• D: 8530 ft (2600 m)

• O: 3553 ft (1083 m)

• R: 1706 ft (520 m)

• I: 853 ft (260 m)

PTZ

Pan/tilt Range   Pan: 0° to 360°, Tilt: -23.6° to 97.8°

Pan/tilt Speed   Pan Speed:

• Configurable from 0° to 160°/s

• Preset Speed: 240°/s

Tilt Speed:

• Configurable from 0° to 120°/s

• Preset Speed: 200°/s

Proportional Pan           Yes

Presets 300

Patrol Scan       8 patrols, up to 8 presets for each patrol

Pattern Scan     32 path

Power-off Memory        Yes

Park Action       Yes

Preset, Patrol Scan, Pattern Scan, Home

Power Up Actions          Yes

3D Positioning Yes

PTZ Status Display         Yes

Preset Freezing Yes

Scheduled Task Yes

PTZ Protocol     Pelco-D, Pelco-P

Angle Adjustment (Manual)

Range   Pan: 0° to 360°, Tilt: -23.6° to 97.8°

ILLUMINATOR

Illuminator Type            • 2× IR LED

• 2× Integrated Infrared-White LED

IR LED   • Quantity: 2

• Range: 328 ft (100 m)†

• Wavelength: 850 nm

Illuminator Distance      • IR LED: 100 m (328 ft)†

• White LED: 50 m (164 ft)†

Illuminator On/Off Control        Auto/Scheduled/Always on/Always off

Integrated Infrared-White LED   • Quantity: 2

• White LED Range: 164 ft (50 m)†

VIDEO

Max. Resolution            2688x1520

Main Stream     • Frame Rate:

50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps

• Resolution:

2688x1520, 2560x1440, 2304x1296, 2048x1280

Sub-Stream      • Frame Rate:

50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps

• Resolution:

840x480, 704x576, 640x480, 640x360, 352x288, 320x240

Third Stream     • Frame Rate:

50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps

• Resolution:

1920x1080, 1280x960, 1280x720, 848x480, 704x576

Bit Rate Control            CBR, VBR

Video Compression       • Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264

• Third-stream: H.265/H.264/MJPEG

H.264 Type       High Profile

H.264+ Main Stream Supported

H.265 Type       Main Profile

H.265+ Main Stream Supported

Video Bit Rate   • Main Stream: 4096 Kbps to 16384 Kbps

• Sub-Stream: 128 Kbps to 2048 Kbps

• Third Stream: 768 Kbps to 16384 Kbps


Image Settings • Mirror

• Brightness

• Contrast

• Saturation

• Sharpness

• Exposure

• WDR

• White Balance

• IR Light Intensity

• HLC Adjustable

• Low Illuminator

Image Enhancement      BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range    120 dB

Defog   Digital Defog

Image Stabilization        EIS

SNR      ? 52 dB

Image Parameters Switch           Yes

Privacy Mask     Up to 4 Masks

ROI       8 Regions

OSD Setting      Yes

AUDIO

Audio Communication   Two-Way Audio

Audio Input      Built-in Microphone

Audio In Interface

Audio Output    Built-in Speaker

Audio Out Interface

Audio Compression       Yes

Audio Sampling Rate     8 KHz

Environment Noise Filtering       Yes

Audio Bit Rate   64 Kbps(G.711 alaw)

NETWORK

Protocol           TCP/IP, UDP, ICMP, ARP, SNMP, SMTP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP

ONVIF Yes

API       Open Network Video Interface (Profile G/S/T)

Simultaneous Live View 3 Main Streams & 3 Sub-Streams & 3 Third-streams

Client    VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client

Web Browser    • Google Chrome® 57 and above

• Firefox® 52 and above

• Safari® 11 and above

• Microsoft® Edge 91 and above

Cloud   Yes

Security            Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication

ALARM AND EVENT MANAGEMENT

Smart Event      • Intrusion Detection

• Line Crossing Detection

• Region Entering Detection

• Region Exiting Detection

• Loitering Detection

• Human Detection

• Vehicle Detection

• Abnormal Sound Detection

• Scene Change Detection

Basic Event       • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)

• Camera Tampering

• Exception (Illegal Login)

Alarm Linkage   • Memory Card Video Recording

• Upload Capture

• Alarm Output Device

• Push Notifications

• Send to Alarm Server

• Active Defence-Sound Alarm

• Active Defence-Light Alarm

• Email Alarm

• Smart Tracking

Smart Tracking • Intelligent Auto Tracking (Human/Vehicle/Event-Triggered)

• Manual Tracking (Joystick Support)

Deep Learning Function

People & Vehicle Analytics         Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.‡

INTERFACES

Network Interface         1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Alarm   2 Alarm In, 1 Alarm Out

Red/Blue Warning Lights

Reset Button     Yes

Power   DC Power Port

RS-485 Port      Yes

On-board Storage         Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*

Built-in Microphone      Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

Built-in Speaker            Yes

Audio   1 Audio In, 1 Audio Out

GENERAL

Operating Temperature -30 °C to 65 °C (-22 °F to 149 °F)

Storage Temperature     -40 °C to 65 °C (-40 °F to 149 °F)

Operating Humidity      95% or Less (Non-Condensing)

Storage Humidity          95% or Less (Non-Condensing)

Package Content           • VIGI Network Camera

• Installation Guide

• Waterproof Cable Attachments

• Mounting Accessories

Material            Metal

Net Weight       2.8 kg

Power Supply    DC

• 12V DC ± 5%, Max. 21.6 W, 5.5 mm Coaxial Power Plug

• Recommended Power Supply:

PoE

• PoE: 802.3at, Class 4, Max. 24.7 W

ErP Information

• Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 9.2W

Protection         • IP66 Weatherproof

• IK08 Vandal-Proof

• 6 kV Lightning Protection

Product Dimensions (L x W x H) ?6.3 × 10.6 in (?160 × 270 mm)

Certifications     CE, NTRA, VCCI, KC, BSMI, FCC, IP66, IK08, ONVIF
