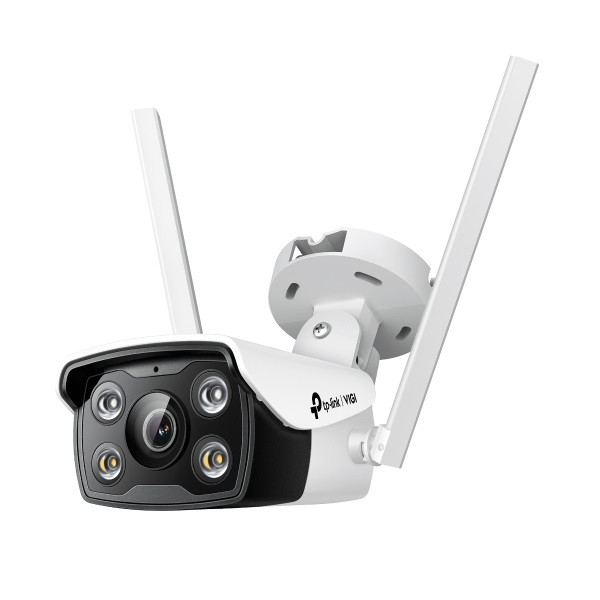

TP-Link IP csőkamera WiFi - C340-W (FullColor, 4MP, 4mm, IP66, H265+, fehér LED30m, IR30m, 12VDC; SD; mikr. hangsz)
TP-Link IP csőkamera WiFi - C340-W (FullColor, 4MP, 4mm, IP66, H265+, fehér LED30m, IR30m, 12VDC; SD; mikr. hangsz)
41 957 Ft
Nettó: 33 037 Ft

TP-Link IP csőkamera WiFi - C340-W (FullColor, 4MP, 4mm, IP66, H265+, fehér LED30m, IR30m, 12VDC; SD; mikr. hangsz)

TP-Link IP csőkamera WiFi - C340-W (FullColor, 4MP, 4mm, IP66, H265+, fehér LED30m, IR30m, 12VDC; SD; mikr. hangsz)
41 957 Ft
Nettó: 33 037 Ft
Szállítási Idő :
5 munkanap

Kamera
Képérzékelő 1/3” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Aperture 4 mm: F1.6
Optika Fixed focal lens (4 mm)
Lens Mount M12
Min. szükséges megvilágítás 0 lux with IR/white Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Day/Night/Auto/Schedule-Switch
Digital Noise Reduction 3D DNR
WDR DWDR
Weatherproof Rating IP66
IR Working Distance 30m
Illumination Distance 30 m
Látószög (4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
LENS
Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
FOV Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Lens Mount M12
DORI Distance Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range Pan: -90° to 90°,
Tilt: -90° to 90°
ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED Quantity: 2
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2560 X 1440
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ? 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
Hang
Hangkommunikáció Two-Way Audio
Hangbemenet Yes
Hangkimenet Yes
Hangtömörítés Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
Hálózat
Szabvány TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wireless Rate 11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n)
Wireless Security WPA/WPA2-PSK
ONVIF Yes
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Biztonság Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage NAS (NFS, SMB/ CIFS)
Frequency 2.4 GHz
Vezeték nélküli
Standards IEEE 802.11b/g/n
WiFi Channels UN: 1-13
US: 1-11
Frekvencia 2.4 GHz
Sugárzási teljesítmény High
Auto Wireless Channel N/A
Wireless Statistics N/A
Throughput Monitoring N/A
Radio Bandwidth Auto: N/A
20M: Yes
40M: Yes
Wireless Rate 11Mbps(802.11b)
54Mbps(802.11g)
150Mbps(802.11n)
Wireless Security PWPA/WPA2-PSK
Wireless Mode AP, AP Client
Figyelmeztetési és eseménykezelési vezérlés
Smart Event Area Intrusion Detection, Line-Crossing Detection, People Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method N/A
Output Notification Message Push
Fizikai kezelőfelület
Hálózati csatlakozás 1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input Built-in Microphone
Audio Output Built-in Speaker
Alarm N/A
Reset Button Yes
Power DC Power Port
Gomb Reset Button
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A
Általános
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Tömeg 195g
Csomagolás tartalma VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Power Adapter
Mounting Accessories
Méret (Ma x Sz x Mé) 80 × 70.6 × 173.4 mm
Material Plastic
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight 0.31 Kg
Gross Weight 0.6 Kg
Power Consumption 12V DC: Max 7W
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
Antenna Quantity: 2
Type: 2.4GHz Welded Dipole Omni-Directional Antenna
Gain: 2.0dBi
Protection IP66
Product Dimensions (L x W x H) 80× 173 × 71 mm (excluding antennas)
Certifications CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
Videó/Kép
Videó tömörítés Main stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Kép frissítés (frame) és felbontás Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Videótovábbítás Main Stream
Sub-Stream
Képbeállítás Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart Event Area Intrusion Detection, Line-Crossing Detection, Human Detection
Basic Event Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
