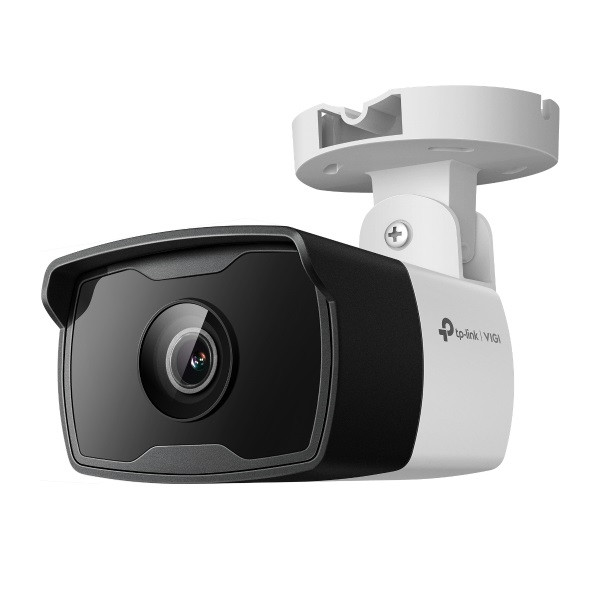

TP-Link IP csőkamera - C330I (3MP, 4mm, kültéri IP67, H265+, IR30m, 12VDC /PoE)
TP-Link IP csőkamera - C330I (3MP, 4mm, kültéri IP67, H265+, IR30m, 12VDC /PoE)
20 637 Ft
Nettó: 16 250 Ft

TP-Link IP csőkamera - C330I (3MP, 4mm, kültéri IP67, H265+, IR30m, 12VDC /PoE)

TP-Link IP csőkamera - C330I (3MP, 4mm, kültéri IP67, H265+, IR30m, 12VDC /PoE)
20 637 Ft
Nettó: 16 250 Ft
Raktárkészlet:
Raktáron
Szállítási Idő :
5 munkanap

Kamera
Képérzékelő 1/2.8” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Aperture 2.8 mm: F2.2
4 mm: F2.0
6 mm: F2.0
Optika 2.8 mm/ 4 mm/ 6 mm
Lens Mount M12
Min. szükséges megvilágítás Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism IR Cut Filter
Day/Night Switch Day/Night/Auto/Schedule-Switch
Digital Noise Reduction 3D DNR
WDR DWDR
Weatherproof Rating IP67
IR Working Distance 30m
Látószög 2.8mm: 97.8°/52.9°/117.9°(H/V/D)
4mm: 82.5°/44.9°/99.3°(H/V/D)
6mm: 51.9°/28.7°/60°(H/V/D)
LENS
Type Fixed Focal Lens
Focal Length 2.8 mm/4 mm/6 mm
Aperture 2.8mm: F2.2
4mm: F2.0
6mm: F2.0
FOV 2.8 mm:
Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9°

4 mm:
Horizontal FOV: 82.5°, Vertical FOV: 44.9°, Diagonal FOV: 99.3°

6 mm:
Horizontal FOV: 51.9°, Vertical FOV: 28.7°, Diagonal FOV: 60°
Lens Mount M12
DORI Distance 2.8 mm:
Detect: 49 m (161 ft)
Observe: 20 m (67 ft)
Recognize: 10 m (32 ft)
Identify: 5 m (16 ft)

4 mm:
Detect: 65 m (214 ft)
Observe: 27 m (89 ft)
Recognize: 13 m (43 ft)
Identify: 7 m (21 ft)

6 mm:
Detect: 98 m (321 ft)
Observe: 41 m (134 ft)
Recognize: 20 m (64 ft)
Identify: 10 m (32 ft)
Angle Adjustment (Manual)
Range Pan: -90° to 90°
Tilt: -90° to 90°
ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED N/A
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2304 × 1296
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable
by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ? 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
Hang
Hangkommunikáció N/A
Hangbemenet N/A
Hangkimenet N/A
Hangtömörítés N/A
Audio Sampling Rate N/A
Environment Noise Filtering N/A
Audio Bit Rate N/A
Hálózat
Szabvány TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Biztonság Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage NAS (NFS, SMB/ CIFS)
Figyelmeztetési és eseménykezelési vezérlés
Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage Message Push
Linkage Method N/A
Output Notification Message Push
Fizikai kezelőfelület
Hálózati csatlakozás 1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm N/A
Reset Button N/A
Power DC Power Port
Gomb -
Video Output -
On-board Storage N/A
Built-in Microphone N/A
Built-in Speaker N/A
Audio N/A
Általános
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Csomagolás tartalma VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Méret (Ma x Sz x Mé) 174 × 74 × 71 mm
Material Plastic
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight 0.2 Kg
Gross Weight 0.35 Kg
Power Consumption 12V DC: Max 5W
PoE: Class 0
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Protection IP67
Product Dimensions (L x W x H) 174 × 74 × 71 mm
Certifications CE/BSMI/VCCI/ONVIF
Videó/Kép
Videó tömörítés Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Kép frissítés (frame) és felbontás Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution 3MP (2304 × 1296)
Videótovábbítás Main Stream
Sub-Stream
Képbeállítás Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Video Bit Rate 64 Kbps to 4 Mbps
Day/Night Switch Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Area Entrance Detection, Area Exiting Detection, Abandoned Object Detection, Object Removal Detection, Vehicle Detection
Basic Event Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
