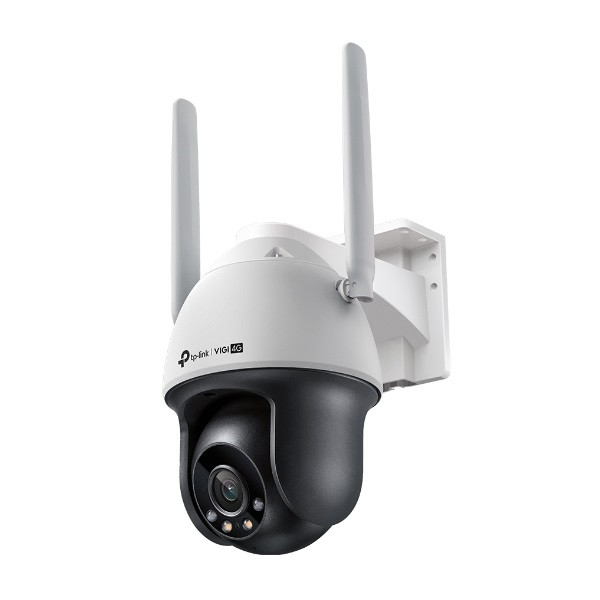

TP-Link IP PT kamera 4G - C540-4G (FullColor, 4MP, 4mm, H265+, IP66, LED30m, IR30m, IP66; 12VDC; SD; audio, nanoSIM)
TP-Link IP PT kamera 4G - C540-4G (FullColor, 4MP, 4mm, H265+, IP66, LED30m, IR30m, IP66; 12VDC; SD; audio, nanoSIM)
79 906 Ft
Nettó: 62 918 Ft

TP-Link IP PT kamera 4G - C540-4G (FullColor, 4MP, 4mm, H265+, IP66, LED30m, IR30m, IP66; 12VDC; SD; audio, nanoSIM)

TP-Link IP PT kamera 4G - C540-4G (FullColor, 4MP, 4mm, H265+, IP66, LED30m, IR30m, IP66; 12VDC; SD; audio, nanoSIM)
79 906 Ft
Nettó: 62 918 Ft
Szállítási Idő :
5 munkanap

Kamera
Képérzékelő 1/3.06” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Min. szükséges megvilágítás 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
FOV Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
Lens Mount M12*0.5
DORI Distance Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
PTZ
Pan/tilt Range Pan: 0° to 348°, Tilt: 0° to 120°
Pan/tilt Speed • Pan Speed:
Configurable from 8° to 44°/s; Preset Speed: 44°/s

• Tilt Speed:
Configurable from 8° to 44°/s, Preset Speed 44°/s
Manual Control Speed Configurable from 8° to 35°/s
Presets 300
Patrol Scan 8 patrols, up to 8 presets for each patrol
Power-off Memory Yes;
Auto restore to previous PT and lens status after power failure
Park Action Yes;
Preset; Patrol Scan
3D Positioning Yes
Angle Adjustment (Manual)
Range • Pan: 0° to 348°
• Tilt: 0° to 120°
ILLUMINATOR
IR LED • Quantity: 2
• Range: 30m
• Wavelength: 850nm
White LED • Quantity: 2
• Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2560 X 1440
Main Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 3 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure, WDR,
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation (90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ? 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
Hang
Hangkommunikáció Two-Way Audio
Hangbemenet Yes
Hangkimenet Yes
Hangtömörítés Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
Hálózat
Szabvány TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API ONVIF
Simultaneous Live View 2 Main Streams & 2 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud Yes
Biztonság Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G
Standard LTE-TDD/LTE-FDD/WCDMA
SIM Type Nano SIM
Category 4
Frequency • LTE-FDD: B 1/3/5/7/8/20/28
• LTE-TDD: B 38/40/41
• WCDMA: B 1/5/8
Figyelmeztetési és eseménykezelési vezérlés
Smart Event • Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• People Detection
• Vehicle Detection
Basic Event • Motion Detection
• Video Tampering Detection
• Exception (Illegal Login)
Alarm Linkage • Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
Linkage Method N/A
Output Notification Message Push
Fizikai kezelőfelület
Hálózati csatlakozás 1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Nano-SIM Card Slot Yes
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A
Általános
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Csomagolás tartalma • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Power Adapter
Material Plastic
Net Weight 0.69 Kg
Gross Weight 1.16 Kg
Power Supply 12V DC/1A, 5.5mm Coaxial Power Plug
Antenna • Quantity: 2

• Type:
690~960&1710~2690MHz Dipole Omni-Directional Antenna

• Gain:
Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Protection IP66
Product Dimensions (L x W x H) 120 × 182 × 201 mm (excluding antennas)
Certifications CE, RCM, BSMI, RoHS, NCC
