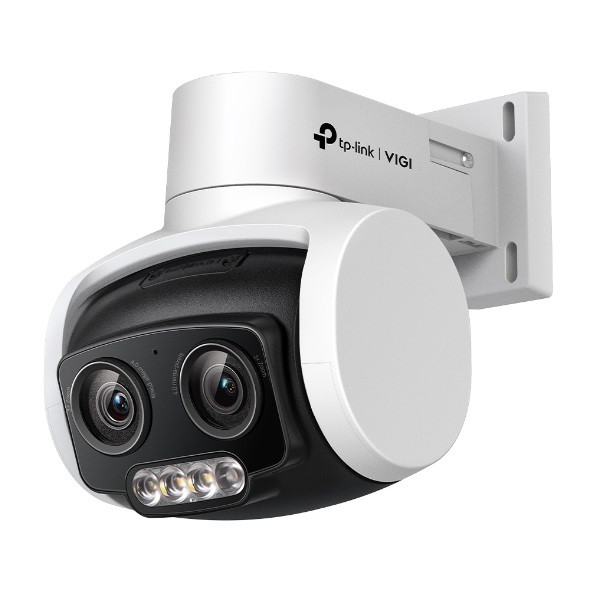

TP-Link IP PT kamera - C540V (FullColor Dual-Lens, 4MP, 4-12mm, H265+, LED+IR30m, IP66; PoE/12VDC; SD; 2 irányú hang)
TP-Link IP PT kamera - C540V (FullColor Dual-Lens, 4MP, 4-12mm, H265+, LED+IR30m, IP66; PoE/12VDC; SD; 2 irányú hang)
61 933 Ft
Nettó: 48 766 Ft

TP-Link IP PT kamera - C540V (FullColor Dual-Lens, 4MP, 4-12mm, H265+, LED+IR30m, IP66; PoE/12VDC; SD; 2 irányú hang)

TP-Link IP PT kamera - C540V (FullColor Dual-Lens, 4MP, 4-12mm, H265+, LED+IR30m, IP66; PoE/12VDC; SD; 2 irányú hang)
61 933 Ft
Nettó: 48 766 Ft
Szállítási Idő :
5 munkanap

Kamera
Képérzékelő 1/3” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Min. szükséges megvilágítás 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Day/Night/Auto/Schedule-Switch
Zoom 3x Mixed Zoom
LENS
Focal Length 4-12 mm (Mixed Zoom)
Aperture F1.6
FOV Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°
Lens Mount M12*P 0.5
DORI Distance • 4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

• 8 mm
Detect: 150 m (493 ft)
Observe: 63 m (205 ft)
Recognize: 30 m (98 ft)
Identify: 15 m (49 ft)
PTZ
Pan/tilt Range Pan: 0° to 332°, Tilt: 0° to 120°
Pan/tilt Speed Pan Speed:
Configurable from 1° to 55°/s; Preset Speed: 55°/s

Tilt Speed:
Configurable from 1° to 40°/s, Preset Speed 40°/s
Manual Control Speed Configurable from 8° to 35°/s
Presets 300
Patrol Scan 8 patrols, up to 8 presets for each patrol
Power-off Memory Yes;
Auto restore to previous PTZ and lens status after power failure
Park Action Yes;
Preset; Patrol Scan
3D Positioning Yes
Angle Adjustment (Manual)
Range Pan: 0° to 332°, Tilt: 0° to 120°
ILLUMINATOR
IR LED Quantity: 1
Range: 30m
Wavelength: 850nm
White LED Quantity: 3
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2560 X 1440
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ? 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
Hang
Hangkommunikáció Two-Way Audio
Hangbemenet Yes
Hangkimenet Yes
Hangtömörítés Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
Hálózat
Szabvány TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API Open Network Video Interface (Profile S)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Biztonság Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Figyelmeztetési és eseménykezelési vezérlés
Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method N/A
Output Notification Message Push
Fizikai kezelőfelület
Hálózati csatlakozás 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A
Általános
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Csomagolás tartalma VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Material Plastic
Net Weight 0.43 Kg
Gross Weight 0.66 Kg
Power Supply 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug
PoE: 802.3at, class 4, Max. 16 W
Protection IP66
Product Dimensions (L x W x H) 107*136*139 mm
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
